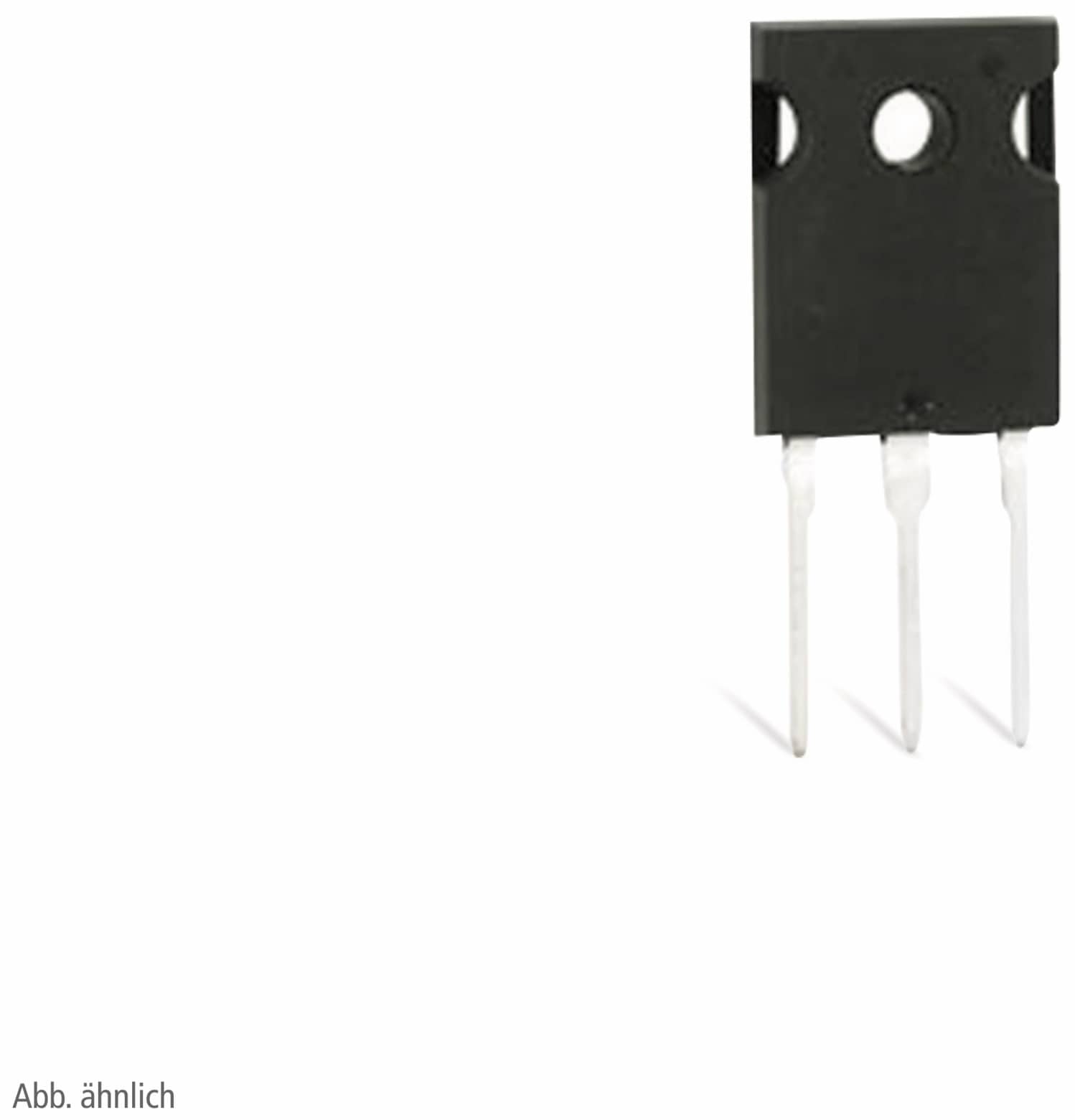

INTERNATIONAL RECTIFIER IGBT IRG4PC30UDPBF

Uces 600 V, Ics25 23 A, Icpuls 92 A, Ptot 100 W, Ugeth 3 V, tdon 40 ns, tdoff 91 ns, TO-247.

Technische Daten:

• Typ: IGBT
• Bauform: TO-247AC
• max. Collector-Emitter Breakdown Voltage (Uces): 600 V
• max. Continuous Collector Current at 25°(Ic25): 23 A
• max. Pulsed Collector Current (Icpuls): 92 A
• Power Dissipation (Ptot): 100 W
• min. Gate Thereshold Voltage (Uge th): 3 V
• Turn On Delay Time (td on): 40 ns
• Turn Off Delay Time (td off): 91 ns
• Hersteller: INTERNATIONAL RECTIFIER
• Herstellerartikelnummer: IRG4PC30UDPBF
• Datenblatt: http://www.infineon.com/
